The main function:

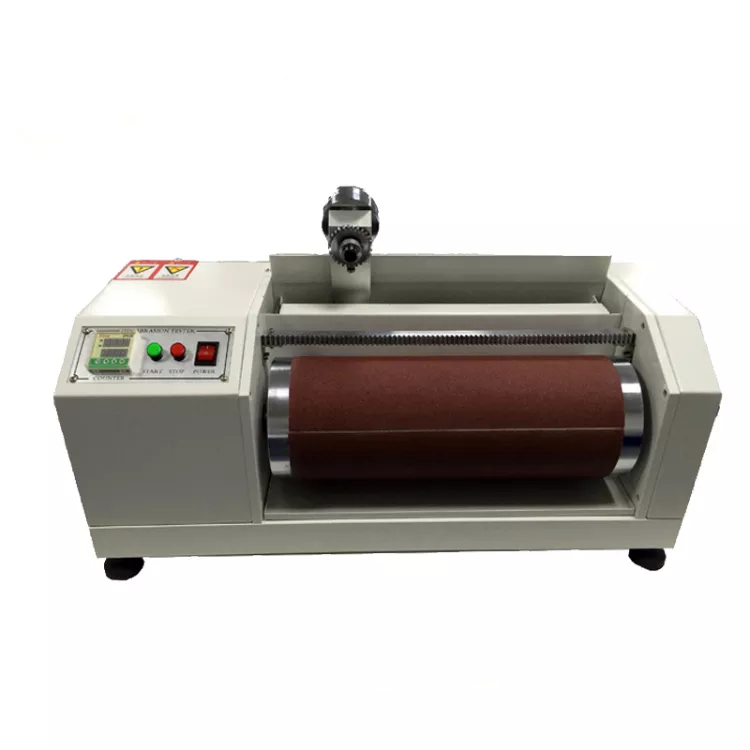

DIN abrasion tester instrument is to test the friction of the surface by a particular piece of sandpaper, After friction for a certain time, and then assesses the condition of the material surface weight, volume, and thickness, from this standard to assess the abrasive nature of materials.
This DIN abrasion tester instrument is a high efficiency, has good reproduction, and easy to operate, applied to test the abrasive nature of materials, such as elastic materials, rubber, tires, convey belts, transmit belts, soles, synthetic leather, leather, and others
Corresponding standard :
GB/T9867,GB/T 20991,GB/T 26703,EN ISO 20344,ISO 4649,DIN 53516,BS 903:A9,SATRA TM147
Applicable industry:
Applied to test leather performance in shoes, clothing, luggage handbag industry, research laboratories, commodity inspection, arbitration, and technical supervision departments.
Features:
- Idler: 150mm
- Abrasion stroke: 40 ± 0.2M
- Horizontal displacement: 4.2mm / rotate
- Stroke: 20m/40m presetting
- Grips lateral displacement: 4.2 ± 0.04rpm
- Idler wheel speed: 40 ± 1cpm
- Measuring way: Auto/Manual presetting
- Load: 2.5 ± 0.1N,5 ± 0.1N,10 ± 0.1N
- Specimen size: dia 16mm, thickness at least 6mm
- Emery cloth Specification: 60 #, the seam is less than 2mm.
- Sand paper: 60 Germany
- Dimension: 95*66*31cm
- Power: 220v 50hz
