Applicable Range:

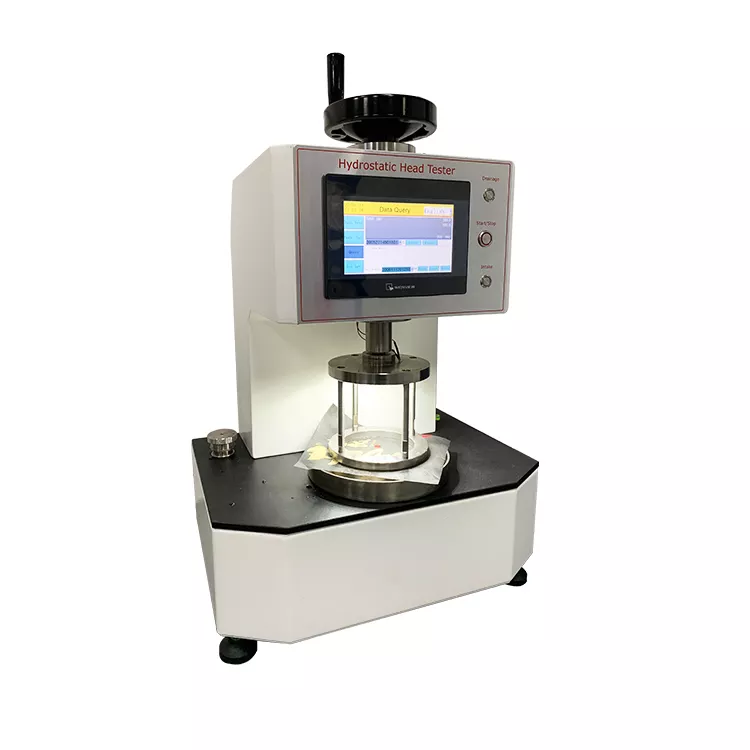

The Fabric Hydrostatic Head Pressure Test Machine is a tool used to test the waterproofness of fabrics. This machine applies pressure to a sample of the fabric being tested in order to simulate the effects of water on the material. The fabric is placed between two plates, with the bottom plate remaining stationary and the top plate moving down to apply pressure. A hydrostatic head is created by filling the space between the plates with water, and the pressure is measured to determine the fabric’s waterproofness. This test is commonly used in the water permeability of various fabrics that have undergone waterproof treatment. Such as canvas, coated fabric, covering cloth, rainproof clothing fabric, tarpaulin, tent cloth, and geotextile materials.
Standards:
GB/T4744, FZ/T 01004, ISO811, Â AATCC127, JISL1092, DIN 53886
Testing mode
- Turbocharged
- Constant pressure time
- Constant pressure regularly
- Flexing resistance relaxation method
- Leakage water method
Measuring range and accuracy
| Model |
-5 |
-10 |
-20 |
| Measuring range |
1Pa~50kPa |
1Pa~100kPa |
1Pa~200kPa |
| Accuracy |
0.2% |
0.5% |
0.5% |
Main specifications and technical indicators:
| Sample chuck area | 100cm2 |
| Water pressure rise rate | 0-30000Pa/min; 0-98000Pa/min (-30 type) |
| Display accuracy | ≤10Pa |
| Test unit | Pa; KPa; mmH2O; cmH2O; mbar; |
| Working mode | 2 types |
| Display mode | color LCD touch screen, Chinese and English menu; |
| Water tank capacity | 2500ml |
| Power source | AC220V±10% 50Hz; |
| Power | 200W |
| Dimensions | 580×400×700mm; |
| Weight | 75kg; |
Instrument characteristics
1. Computer program-controlled, LCD menu, built-in five sets of measurement mode
2. Built-in water tank design, original water rate balance system, with a stable and accurate lifting speed
3. Pneumatic clamp
Technical parameters
1. Power source: Ac 220V±10%  50HZ 200W
2. External dimension:560×400×600mm
3.Weight:60kg
